PRODUCT

Bullet ant

Bullet ants are small and powerful, famous for their poison, and look like a bumblebee.

The bullet ant Smart Crusher is the perfect solution to dismantle it safely and effectively in a very limited space. Its small size and light power combination worked wonders where mechanized demolition work was not previously possible. Bullet ants have a smaller and stronger crushing hammer, a faster movement speed, a new control system, and a smaller shape. When dismantled indoors, the crushing capacity can replace the manual productivity of 6-8 workers. Low weight makes it suitable for indoor work of low load-bearing floors and can be transported in ordinary passenger elevators. Can pass through the door through the smallest pedestrian. Far from dangerous areas, heavy physical labor can be freed, the speed of demolition greatly improved.

List price： 0.00

Price： 0.00

Bullet ants are small and powerful, famous for their poison, and look like a bumblebee.

The bullet ant Smart Crusher is the perfect solution to dismantle it safely and effectively in a very limited space. Its small size and light power combination worked wonders where mechanized demolition work was not previously possible. Bullet ants have a smaller and stronger crushing hammer, a faster movement speed, a new control system, and a smaller shape. When dismantled indoors, the crushing capacity can replace the manual productivity of 6-8 workers. Low weight makes it suitable for indoor work of low load-bearing floors and can be transported in ordinary passenger elevators. Can pass through the door through the smallest pedestrian. Far from dangerous areas, heavy physical labor can be freed, the speed of demolition greatly improved.

Application scenarios

It can be used in building demolition, cement rotary kiln maintenance, mining, tunnel construction, metallurgical furnace maintenance, nuclear industry, emergency rescue and other complex scenarios.

Bullet ants Smart Crusher Optional tools

√ Hydraulic clamp　√ Rubber caterpillar　√ Steel cater pillarrubber shoes　√ Hydraulic scissors　√ Eagle nose pliers　√ Hydraulic vibrating tamper　√ Hydraulic saw　√ Heat resistant oil Pipe　√ Protection　√ Pump cooling　√ Spray dust system　√ Bucket　√ Milling head　√ Broken hammer and a variety of extended genera

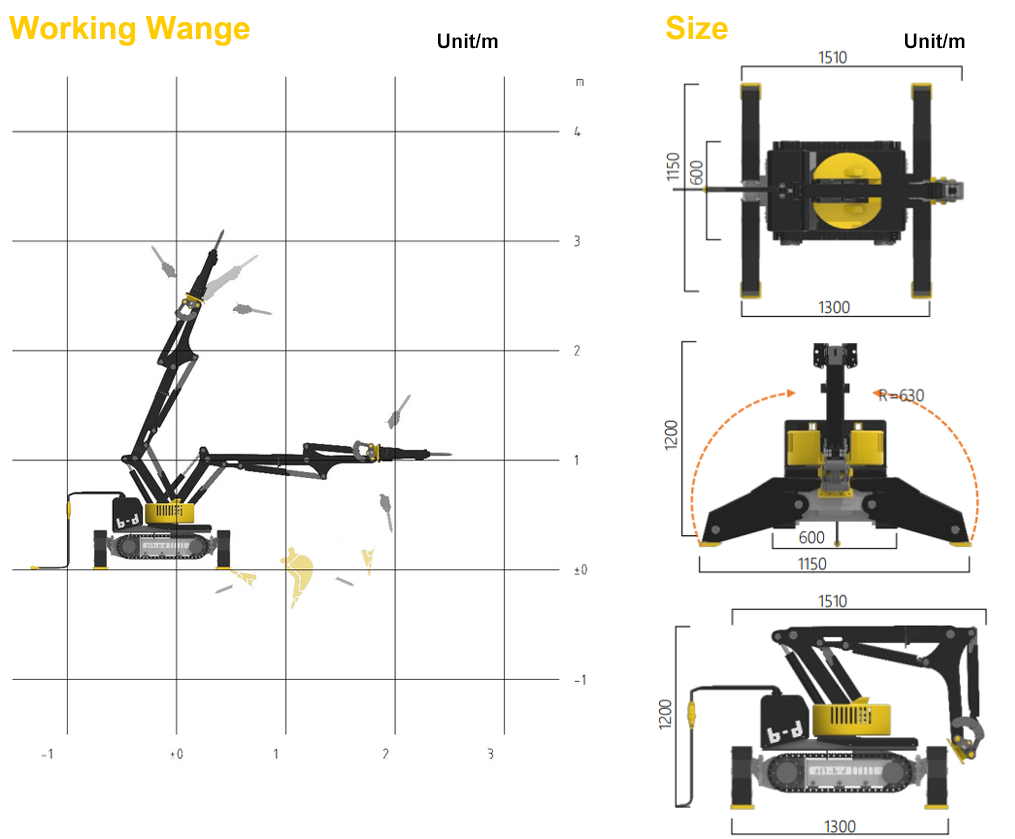

Working range of demolition robot

Parameter configuration table of b-d Smart Crusher

Parameter	Panda	Honey badger	Bullet ant
Walking length	2396	1847	1950
Minimum walking height	1254	1147	940
Minimum walking width	780	780	600
Working width (leg down)	2015	1583	1150
Operating range (highest)	4800	4300	3100
(farthest)	4400	3700	2500
Maximum climbing Angle	30°	30°	30°
Weight（kg）
Body weight (excluding tool head)	1620	980	570
Maximum weight of the tool head is recommended（kg）	260	160	105
Motor model	Low-voltage and high-performance motor	Low-voltage and high-performance motor	Low-voltage and high-performance motor
Motor shell material	Alufer	Alufer	Alufer
Performance index parameters
Swiveling speed	10second / 360°	10second / 360°	6.5second / 240°
Maximum walking speed（km/h）	2.1	2.5	3
Power（kw）	22	15	9.2
System pressure（Mpa）	18-25	18	17
Pump specifications	Load-sensing variable pump	Load-sensing variable pump	Load-sensing variable pump
Sustained maximum working current（A）	32-58	32-40	16-25
System hydraulic capacity	85	45	30
Pumping flow（ L/min）	69	54	27
Equipped with a crushing hammer model	SB202	SB152	SB55
Ballistic work （J）	410	255	101
Impact Frequency (sub / min)	840-1800	850-1900	720-1680
Broken hammer weight（kg）	200	140	90
Brock diameter（mm）	65	50	45
Work efficiency
Break down the concrete every hour	0.61m³	1.76m³	2.9m³
Control type	Remote control / line control	Remote control / line control	Remote control / line control
Communication mode	Digit	Digit	Digit
Remote control distance（m）	200	200	200
Random standard configuration accessories
Telecontroller	√	√	√
Portable leakage protection empty unpacking	√	√	√
Number and length of cable roots	2*25m	2*25m	2*25m
Cable storage rack	√	√	√
