Panda

Panda

Chinese original name: panda, also called iron eating beast, Chinese blood, practiced kung fu.

The Panda model is the largest in the b-d Smart Crusher family. The integrated new intelligent concept is the perfect embodiment of the b-d Smart Crusher technology. With its small and compact, small volume, light weight and excellent dismantling ability, it is widely used in the building demolition, metallurgical slag beating industry. The b-d dismantling machine can enter the narrow porch and metallurgical kiln door hole, and complete the demolition operation efficiently and remote operation to ensure safety.


0.00
0.00


Chinese original name: panda, also called iron eating beast, Chinese blood, practiced kung fu.

The Panda model is the largest in the b-d Smart Crusher family. The integrated new intelligent concept is the perfect embodiment of the b-d Smart Crusher technology. With its small and compact, small volume, light weight and excellent dismantling ability, it is widely used in the building demolition, metallurgical slag beating industry. The b-d dismantling machine can enter the narrow porch and metallurgical kiln door hole, and complete the demolition operation efficiently and remote operation to ensure safety.


Application scenarios

Building demolition, cement, non-ferrous rotary kiln maintenance, mine, tunnel construction, metallurgical furnace maintenance, emergency rescue.


Panda model Smart Crusher Optional tools

√ Hydraulic clamp　√ Rubber caterpillar　√ Steel cater pillarrubber shoes　√ Hydraulic scissors　√ Eagle nose pliers　√ Hydraulic vibrating tamper　√ Hydraulic saw　√ Heat resistant oil Pipe　√ Protection　√ Pump cooling　√ Spray dust system　√ Bucket　√ Milling head　√ Broken hammer and a variety of extended genera

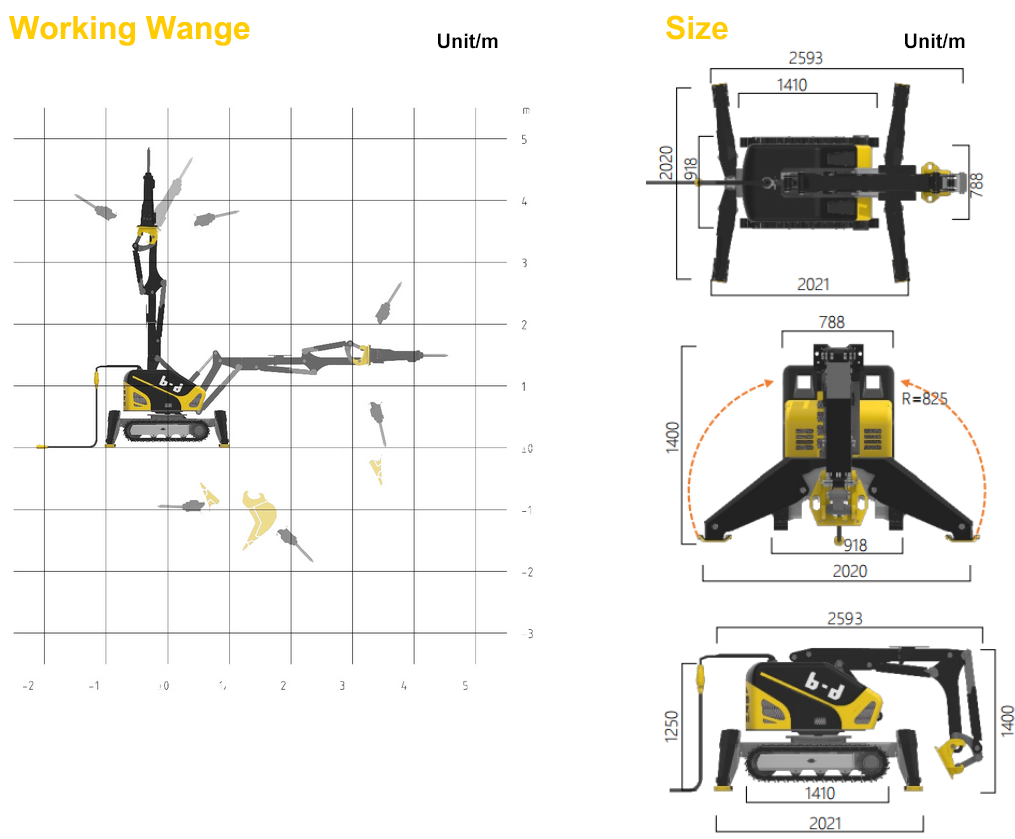

Working range of demolition robot



Parameter configuration table of b-d Smart Crusher

Parameter

Panda

Honey badger

Bullet ant

Walking length

2396

1847

1950

Minimum walking height

1254

1147

940

Minimum walking width

780

780

600

Working width (leg down)

2015

1583

1150

Operating range (highest)

4800

4300

3100

　　　　　　　 (farthest)

4400

3700

2500

Maximum climbing Angle

30°

30°

30°

Weight（kg）

Body weight (excluding tool head)

1620

980

570

Maximum weight of the tool head is recommended（kg）

260

160

105

Motor model

Low-voltage and high-performance motor

Low-voltage and high-performance motor

Low-voltage and high-performance motor

Motor shell material

Alufer

Alufer

Alufer

Performance index parameters

Swiveling speed

10second / 360°

10second / 360°

6.5second / 240°

Maximum walking speed（km/h）

2.1

2.5

3

Power（kw）

22

15

9.2

System pressure（Mpa）

18-25

18

17

Pump specifications

Load-sensing variable pump

Load-sensing variable pump

Load-sensing variable pump

Sustained maximum working current（A）

32-58

32-40

16-25

System hydraulic capacity

85

45

30

Pumping flow（ L/min）

69

54

27

Equipped with a crushing hammer model

SB202

SB152

SB55

Ballistic work （J）

410

255

101

Impact Frequency (sub / min)

840-1800

850-1900

720-1680

Broken hammer weight（kg）

200

140

90

Brock diameter（mm）

65

50

45

Work efficiency

Break down the concrete every hour

0.61m³

1.76m³

2.9m³

Control type

Remote control / line control

Remote control / line control

Remote control / line control

Communication mode

Digit

Digit

Digit

Remote control distance（m）

200

200

200

Random standard configuration accessories

Telecontroller

√

√

√

Portable leakage protection empty unpacking

√

√

√

Number and length of cable roots

2*25m

2*25m

2*25m

Cable storage rack

√

√

√
